GE Energy, UPS Relay Interface Board 1017506
Description

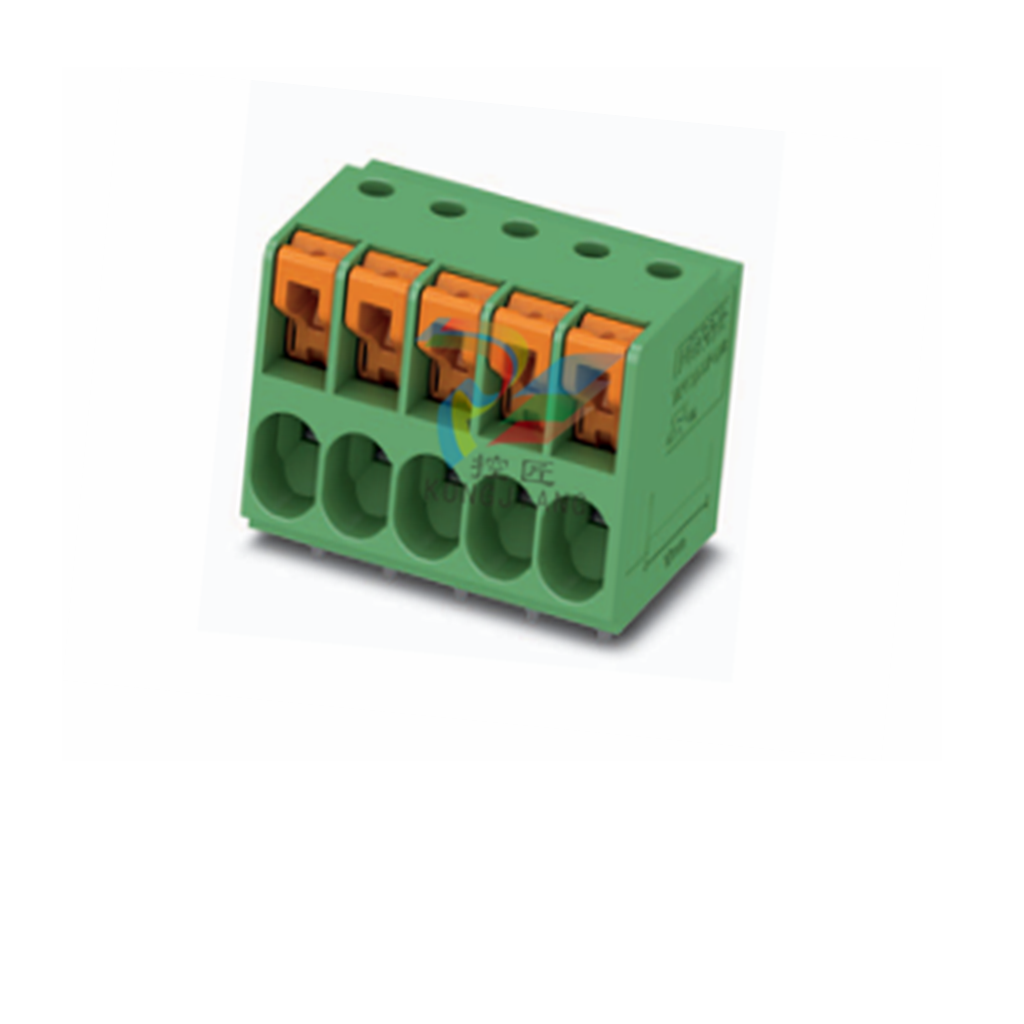

PCB terminal block, nominal current: 32 A, rated voltage (III/2): 400 V, nominal cross section: 2.5 mm², pitch: 5.08 mm, number of positions: 5, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 3.5 mm.
Main features
· No. of pos. 5
· Nominal current 32 A
· Conductor cross section 2.5 mm²
· Nominal voltage 400 V
· Color green
· Connection direction 0 °
· Pitch 5.08 mm
· Type of packaging packed in cardboard
· Connection method Push-in spring connection
advantages
· Easy to adapt, thanks to their identical size and the same pinning for Push-in spring connections as for screw connections
· Time saving push-in connection, tools not required
·Defined contact force ensures that contact remains stable over the long term Intuitive use through colour coded actuation lever
Connection capacity
·Conductor cross section, solid 0.2 mm² to 4 mm²
·Conductor cross section, flexible 0.2 mm² to 4 mm²
·Conductor cross section AWG/kcmil 24 to 12 Conductor cross section flexible, with ferrule without plastic sleeve 0.2 mm² to 2.5 mm²
·Conductor cross section flexible, with ferrule with plastic sleeve 0.2 mm² to 2.5 mm² 2
·Conductors with same cross section, stranded, with TWIN ferrules with plastic sleeve 0.5 mm² to 0.75 mm²
·Stripping length 10 mm
